TFR7800J Indoor Optical Receiver

The TFR7800J indoor optical receiver is designed to transmit the cable TV signal. Simple 220V, 50Hz or DC48V power supply, 2 RF output F connector ...

Current position：HOME > HFC

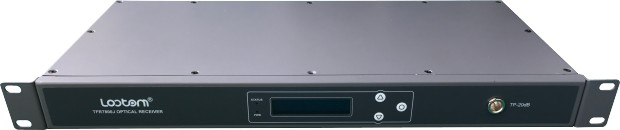

TFR7800J Indoor Optical Receiver

Overview    The TFR7800J indoor optical receiver is designed to transmit the cable TV signal. Simple 220V, 50Hz or DC48V power supply, 2 RF output F connector OUT1, OUT2. Features         ● The output adopts the import module, which improves the C/N and the nonlinear distortion characteristics, and also reduces the power consumption of the whole machine.
        ● Strict reliability test, MTBF is more than 100 thousand hours;
        ● AGC for forward optical receiving, the range of output level is within + 1dB when optical power is -6dBm to +2dBm.
        ● RF output level and slope adjustment can be set through the LCD screen.
        ● Splitter / distributive output optional;
        ● LCD display control and RJ45 network management status monitoring, support SNMP network management, can be monitored by local computer. Technical Specifications

NO.	Item	Unit	Description	Remark
Optical Input
1	Optical Input Wavelength	nm	1200～1600
2	Optical Input Power	dBm	-8～+2
3	AGC	dBm	+2～-6
4	Optical Connector Type		FC/APC or SC/APC
5	Optical Output Loss	dB	≥45
RF Output
1	Frequency Range	MHz	47～860/1000
2	Flatness	dB	±0.75 (output 1、2)
3	RF Output Test	dB	-20±1
4	Output Level	dB	1 way output ≥108dBuV; 2 way distributive output≥104dBuV
5	Equalization	dB	0～-20	1dB step
6	ATT	dB	0～-20	1dBstep
7	RF Impedance	Ω	75
8	Return Loss	dB	≥16(47～860MHz)
9	CNR	dB	51	Remark
10	CSO	dB	60
11	CTB	dB	65
12	Power	V	AC220±10% or DC48
13	Dimension	mm	495×230×43
14	Power Consumption	W	＜20
15	Operating Temperature	℃	0～＋50
Remark: The measurement uses a standard laser transmitter, chain route 10km optical fiber attenuator, with a received optical power of -1dBm. At 550MHz Within the frequency range, 59 PAL-D TV channels are configured according to the Chinese standard. RF output signal is tilted 12dB (862MHz), RF output signal level is 108dBuV.
